High Performance Ball Valves

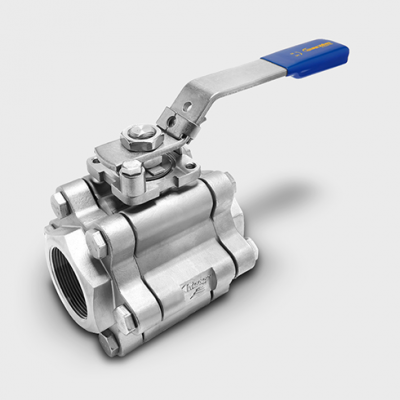

SER.70-79

SERIES 70/79

API 608 3PC STANDARD & FULL PORT BALL VALVE

Size Range: 1/4”-4”
Body Material: Carbon Steel, Alloy 20,
316 Stainless Steel, SMO 254®,
Seat Material: TFM, RTFE, XN, Derlin, PEEK
Ends:
Threaded, Socket Weld, Butt Weld, Flanged
Max Pressure: Vacuum to 1975/1480psi
Temp: -50 – 600°F

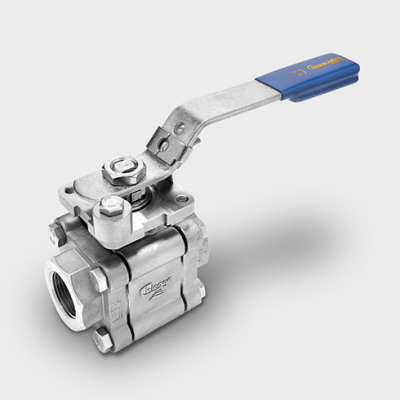

SER.HP70-79

SERIES HP70/79

API 608 3PC STANDARD & FULL PORT BALL VALVE

Size Range: 1/4”-2”
Body Material:
Carbon Steel, 316 Stainless Steel
Seat Material: Derlin, PEEK
Ends:
Threaded, Socket Weld, Butt Weld, Flanged
Max Pressure: 3200 psi
Temp: -50 – 600°F

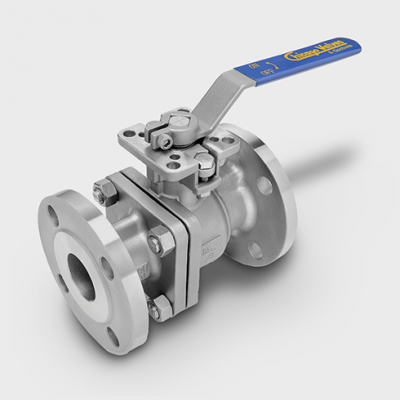

SER.89

SERIES 89

FLANGED FULL PORT BALL VALVE CLASS 150/300

Size Range: 1/2”-12”
Body Material: Carbon Steel, Alloy 20,
316 Stainless Steel, SMO 254®,
Seat Material: TFM, RTFE, XN, PEEK
Class: 150, 300
Max Pressure: 285/740 psi
Temp: -50 – 600°F

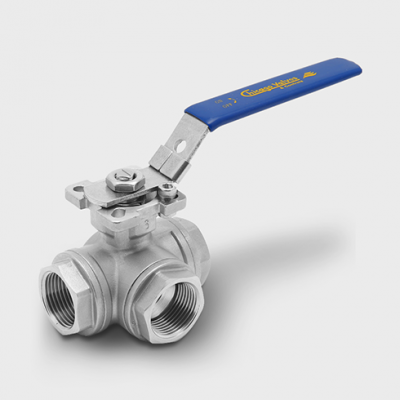

SER.16

SERIES 16

3 WAY BALL VALVE

Size Range: 1/4”-2”
Body Material: 316 Stainless Steel
Ends: Threaded
Max Pressure: 1000 CWP
Temp: -50 – 450°F

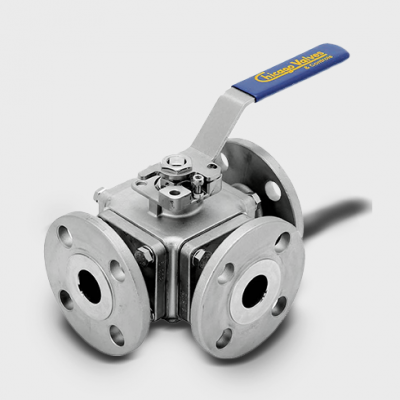

SER.17

SERIES 17

3 & 4 WAY BALL VALVE

Size Range: 1/2”-4”
Body Material: Carbon Steel, 316 Stainless Steel
Ends: Flanged
Max Pressure: 600 CWP
Temp: -50 – 500°F

Fire Safe Ball Valves

SER.70-79

Series FS70/79

FIRE SAFE 3 PIECE STANDARD & FULL PORT BALL VALVE

Size Range: 1/4”-4”
Body Material: Carbon Steel, 316 Stainless Steel, SMO 254®,
Seat Material: TFM, RTFE, XN
Class: 800, 600
Max Pressure: 1975/1480psi
Temp: -50 – 550°F

SER.FS89

SERIES FS89

FIRE SAFE FLANGED FULL PORT BALL VALVE CLASS 150/300

Size Range: 1/2”-12”
Body Material: Carbon Steel, Alloy 20,
316 Stainless Steel, SMO 254®,
Seat Material: TFM, RTFE, XN
Class: 150, 300
Max Pressure: 285/740psi
Temp: -50 – 550°F

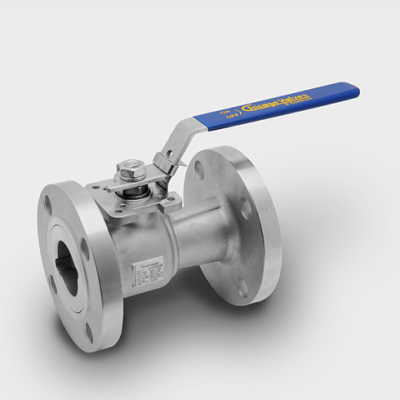

SER.FS84

SERIES FS84

FIRE SAFE FLANGED STANDARD PORT BALL VALVE

Size Range: 1”-4”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: TFM
Class: 150, 300
Max Pressure: 285/740psi
Temp: -50 – 550°F

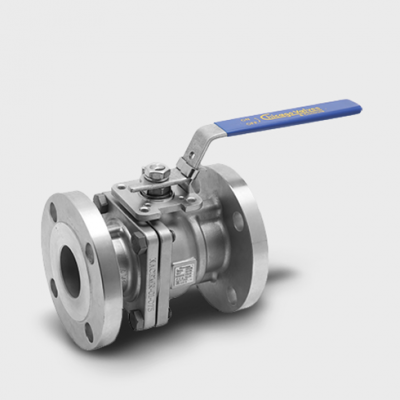

SER.FS85

SERIES FS85

FIRE SAFE FLANGED FULL PORT BALL VALVE

Size Range: 1/2”-4”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: TFM
Class: 150, 300
Max Pressure: Vacuum to 285/740psi
Temp: -50 – 550°F

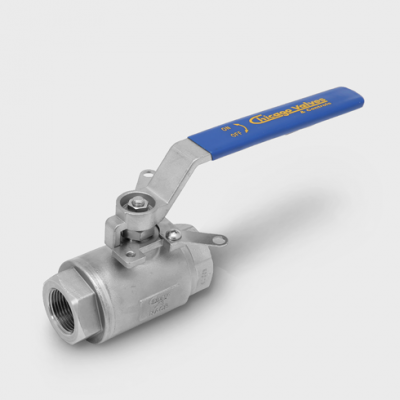

SER.FS27

Series FS27

FIRE SAFE SEAL WELD

Size Range: 1/4”-2”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: DELRIN, PEEK
Ends: Threaded, Socket Weld
Max Pressure: 3600psi
Max Temp: DERLIN 180°F | PEEK 500°F

SER.FS29

SERIES FS29

FIRE SAFE SEAL WELD

Size Range: 1/4”-2”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: DELRIN, PEEK
Ends: Threaded, Socket Weld
Max Pressure: 6000psi
Max Temp: DERLIN 180°F | PEEK 500°F

Seal Weld Ball Valves

SER.26

Series 26

FULL PORT 2000/1500 CWP SEAL WELD BALL VALVE

Size Range: 1/4”-4”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: RTFE
Ends: Threaded
Max Pressure: 2000 CWP (1/4”-2”)
Max Pressure: 1500 CWP (2½”-4”)
Temp: -50° – 500°F

SER.FS27

Series 27/FS27

CLASS 1500 SEAL WELD /
FIRE SAFE SEAL WELD

Size Range: 1/4”-2”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: DELRIN, PEEK
Ends: Threaded, Socket Weld
Max Pressure: 3600psi
Max Temp: DERLIN 180°F | PEEK 500°F

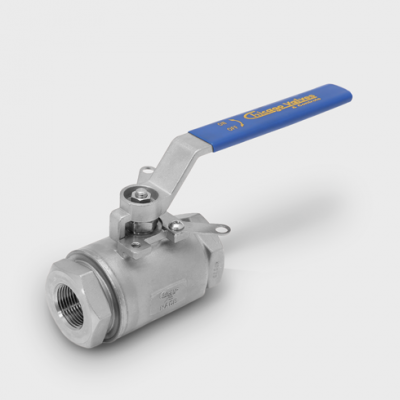

SER.FS29

Series 29/FS29

CLASS 2500 SEAL WELD /
FIRE SAFE SEAL WELD

Size Range: 1/4”-2”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: DELRIN, PEEK
Ends: Threaded, Socket Weld
Max Pressure: 6000psi
Max Temp: DERLIN 180°F | PEEK 500°F

Multi-Purpose Ball Valves

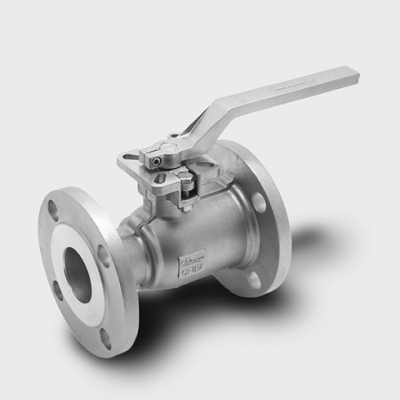

SER.81

Series 81

FLANGED STANDARD PORT BALL VALVE

Size Range: 1”-4”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: RTFE
Class: 150
Max Pressure: 285psi
Max Temp: -50°F – 450°F

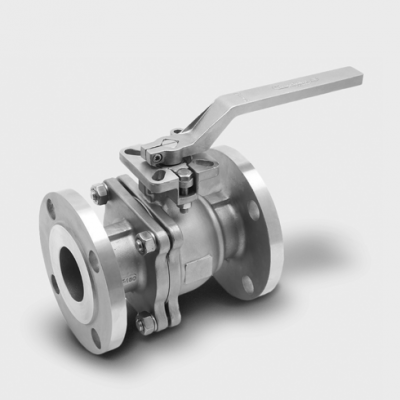

SER.82

Series 82

FLANGED FULL PORT BALL VALVE

Size Range: 1/2”-6”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: RTFE
Class: 150
Max Pressure: 285psi
Max Temp: -50°F – 450°F

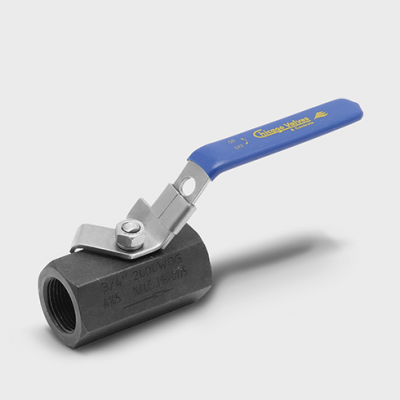

SER.10

Series 10

ONE PIECE UNIBODY FORGED BALL VALVE

Size Range: 1/4”-2”
Body Material: Forged Steel A105
Seat Material: RPTFE
Ends: Threaded
Max Pressure: 2000 CWP
Max Temp: -50°F – 450°F

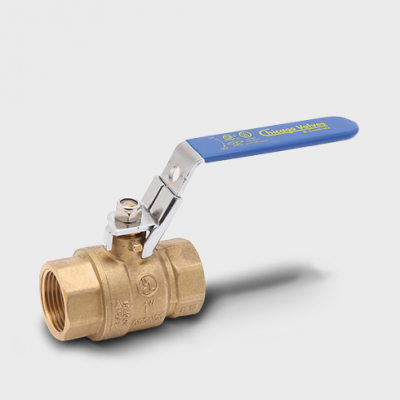

SER.11

Series 11

TWO PIECE FULL PORT BRASS BALL VALVE

Size Range: 1/4”-4”
Body Material: Forged Brass
Seat Material: PTFE
Ends: Threaded
Max Pressure: 600 CWP
Max Temp: 400°F

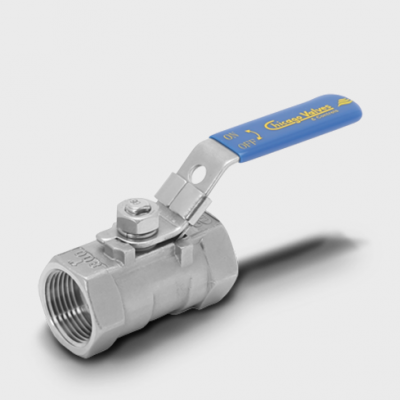

SER.12

Series 12

ONE PIECE UNIBODY REDUCED PORT BALL VALVE

Size Range: 1/4”-2”
Body Material: 316 Stainless Steel
Seat Material: RTFE
Ends: Threaded
Max Pressure (1/4″-1¼”): 1000 CWP
Max Pressure (1½”-2″): 800 CWP
Max Temp: -50°F – 450°F

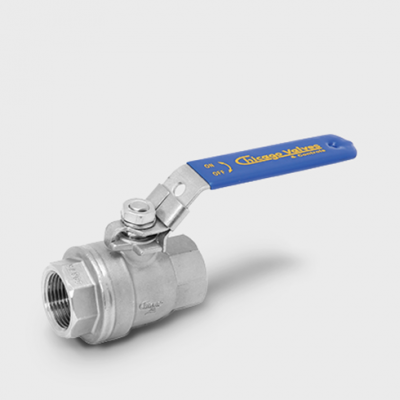

SER.20

Series 20

TWO PIECE FULL PORT 1000 CWP BALL VALVE

Size Range: 1/4”-3”
Body Material: Carbon Steel
Seat Material: RTFE
Ends: Threaded
Max Pressure: 1000 CWP
Max Temp: -50°F – 450°F

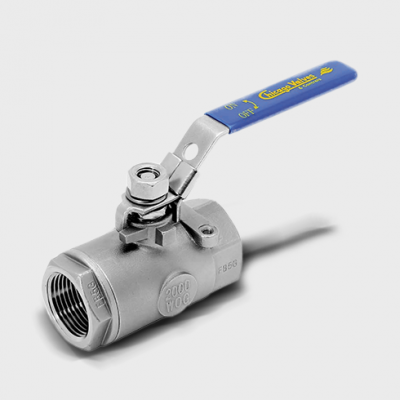

SER.24

Series 24

TWO PIECE STD. PORT 2000/1500 CWP BALL VALVE

Size Range: 1/4”-2”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: RTFE, K-Seat
Ends: Threaded
Max Pressure (1/4″-1¼”): 2000 CWP
Max Pressure (1½”-2″): 1500 CWP
Max Temp: -50°F – 450°F

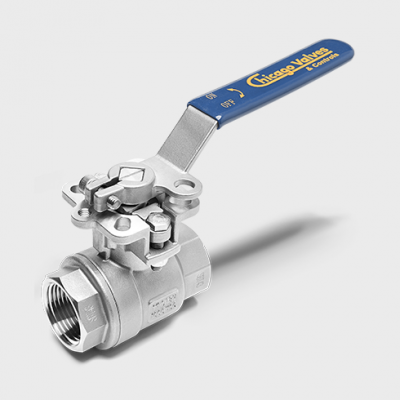

SER.25

Series 25

2-PIECE FULL PORT BALL VALVE DIRECT MOUNT – DMA

Size Range: 1/4”-2”
Body Material: 316 Stainless Steel
Seat Material: RTFE
Ends: Threaded
Max Pressure: 1000 CWP
Max Temp: -50°F – 450°F

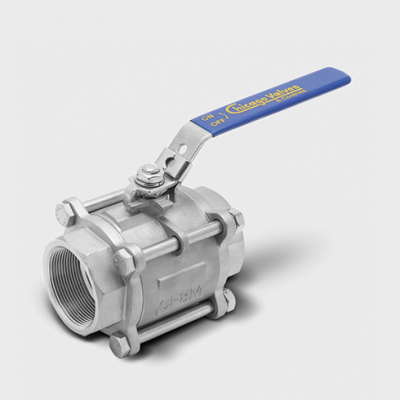

SER.33

Series 33

3-PIECE FULL PORT BALL VALVE

Size Range: 1/4”-2”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: RTFE
Ends: Threaded, Socket Weld
Max Pressure: 1000 CWP
Max Temp: -50°F – 450°F

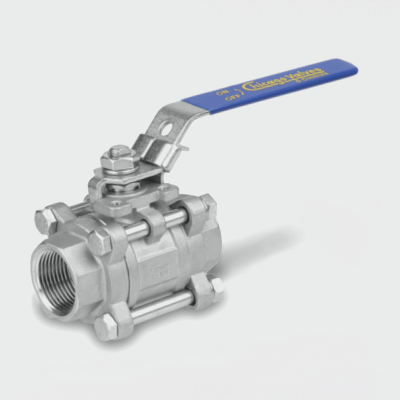

SER.34

Series 34

3-PIECE FULL PORT BALL VALVE

Size Range: 1/4”-2”
Body Material: Carbon Steel, 316 Stainless Steel
Seat Material: RTFE
Ends: Threaded, Socket Weld
Max Pressure: 1000 CWP
Max Temp: -50°F – 450°F

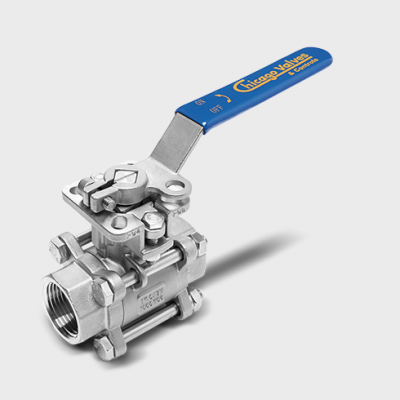

SER.35

Series 35

3-PIECE FULL PORT BALL VALVE DIRECT MOUNT – DMA

Size Range: 1/4”-4”
Body Material: 316 Stainless Steel & Carbon Steel Ends
Seat Material: RTFE
Ends: Threaded
Max Pressure (1/4″-2″): 1000 CWP
Max Pressure (2½”-4″): 800 CWP
Max Temp: -50°F – 450°F

Butterfly Valves

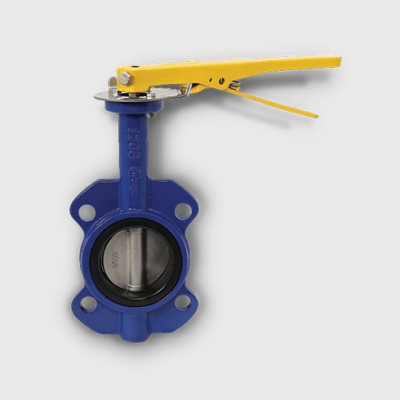

SER.Butterfly

Series 55

RESILIENT SEATED BUTTERFLY

• 200 psi rating (1½”-12”)
• 150 psi rating (14”-48”)
• Epoxy coated body
• Lockable handle
• ISO 5211 mounting pad
• API 609

Multi-Turn Valves

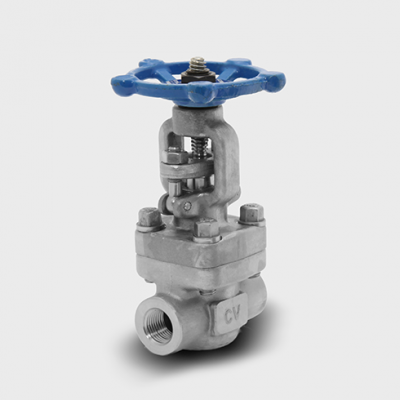

SER.28

Series 28

FORGED STEEL CLASS 800
GATE VALVE

Size Range: 1/4”-2”
Body Material: Forged Steel, 316L Forged Stainless Steel
Ends: Threaded, Socket Weld
Max Pressure: 1975 psi
Max Temp: 850°F

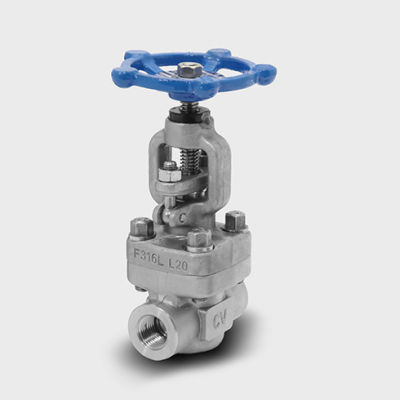

SER.38

Series 38

FORGED STEEL CLASS 800
GLOBE VALVE

Size Range: 1/4”-2”
Body Material: Forged Steel, 316L Forged Stainless Steel
Ends: Threaded, Socket Weld
Max Pressure: 1975 psi
Max Temp: 850°F

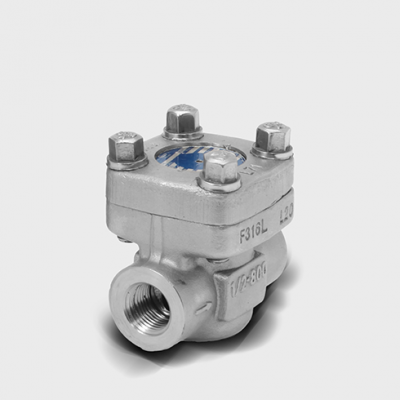

SER.48

Series P48/48

FORGED STEEL CLASS 800
PISTON/CHECK VALVE

Size Range: 1/4”-2”
Body Material: Forged Steel, 316L Forged Stainless Steel
Ends: Threaded, Socket Weld
Max Pressure: 1975 psi
Max Temp: 850°F

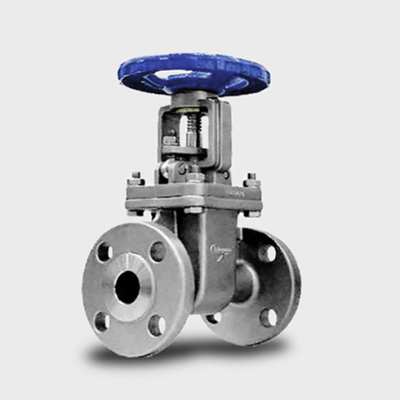

SER.21

Series 21

CAST STEEL GATE VALVE

Size Range: 2”-36”
Body Material: Cast Steel WCB
Ends: Class150/300/600 Flange, BW, RTJ
Max Pressure: 1480 psi
Max Temp: 1000°F

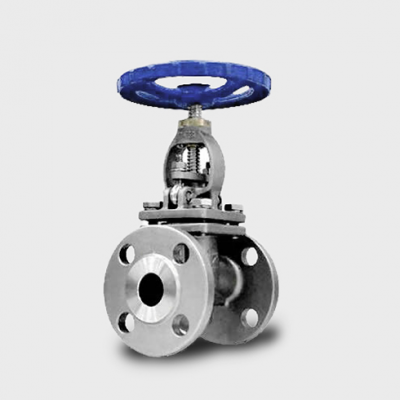

SER.31

Series 31

CAST STEEL GLOBE VALVE

Size Range: 2”-36”
Body Material: Cast Steel WCB
Ends: Class150/300/600 Flange, BW, RTJ
Max Pressure: 1480 psi
Max Temp: 1000°F

SER.41

Series 41

CAST STEEL SWING CHECK

Size Range: 2”-36”
Body Material: Cast Steel WCB
Ends: Class150/300/600 Flange, BW, RTJ
Max Pressure: 1480 psi
Max Temp: 1000°F

SER.216

Series 216

316 STAINLESS STEEL
FLANGED GATE VALVE

Size Range: ½”-12”
Body Material: 316 Stainless Steel
Ends: Class150/300 Flanged, BW
Max Pressure: 720 psi
Max Temp: 1000°F

SER.316

Series 316

316 STAINLESS STEEL
FLANGED GLOBE VALVE

Size Range: ½”-12”
Body Material: 316 Stainless Steel
Ends: Class150/300 Flanged, BW
Max Pressure: 720 psi
Max Temp: 1000°F

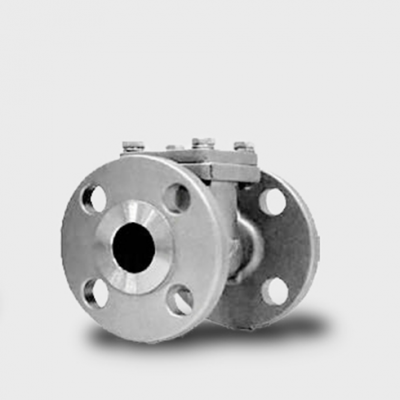

SER.416

Series 416

316 STAINLESS STEEL
FLANGED SWING CHECK

Size Range: ½”-12”
Body Material: 316 Stainless Steel
Ends: Class150/300 Flanged, BW
Max Pressure: 720 psi
Max Temp: 1000°F

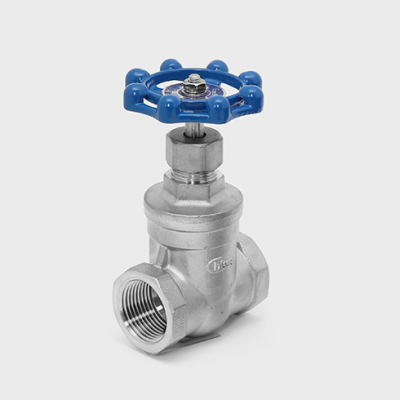

SER.226

Series 226

200# GATE VALVE

Size Range: ½”-3”
Body Material: 316 Stainless Steel
Ends: Threaded, Socket Weld
Max Pressure: 200 CWP
Max Temp: 350°F

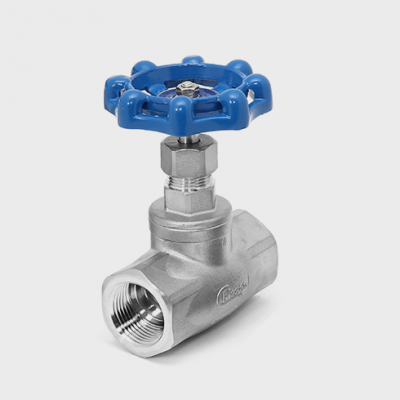

SER.326

Series 326

200# GLOBE VALVE

Size Range: ½”-3”
Body Material: 316 Stainless Steel
Ends: Threaded, Socket Weld
Max Pressure: 200 CWP
Max Temp: 350°F

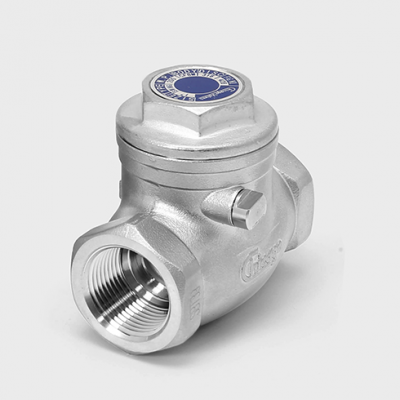

SER.426

Series 426

200# SWING CHECK VALVE

Size Range: ½”-3”
Body Material: 316 Stainless Steel
Ends: Threaded, Socket Weld
Max Pressure: 200 CWP
Max Temp: 350°F

Controls

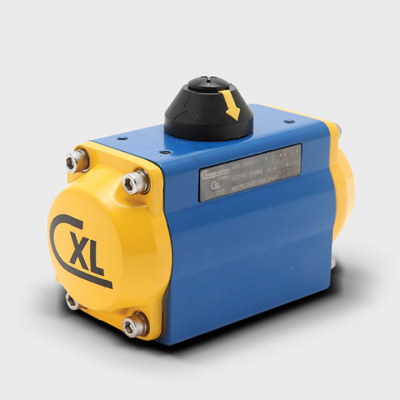

SER.CXL-pneumatic-actuator

Series CXL

PNEUMATIC ACTUATOR

• Anodized body & ends
• Epoxy Polyester Coating
• Nickel Plated alloy steel pinion
• Die-Cast Pistons
• Adjusting Travel
• Preloaded Springs

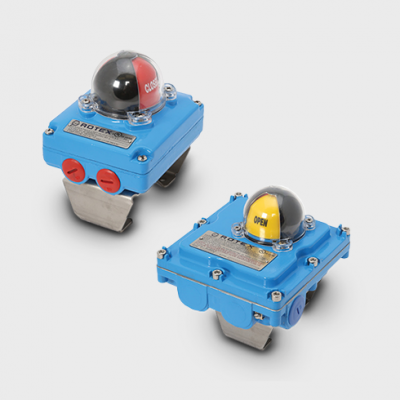

SER.CLS

Series CLS

ROTEX LIMIT SWITCHES
NEMA 4X DXL / NEMA 7X DNL

• UL listed
_Indicator cover: Shatterproof Polycarbonate
• Complies to NAMUR mounting standards
• Special circuit board eliminates internal
_wiring
• Solenoid termination inside the switch box
• Housing Material: DIE Cast Aluminum
_with powder coating

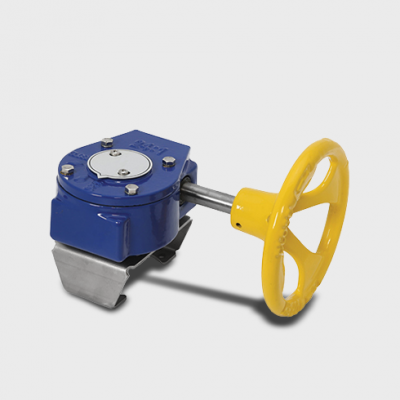

SER.GCO

Series CGO

GEAR OPERATOR

Torque range 1325-132,760 In-Lbs
ISO 5211 mounting dimensions
Chain Wheel operation available
